PEB accessories are the non-structural components that complete a pre-engineered steel building: fasteners, anchor bolts, insulation, ventilators, flashings, gutters, skylights and louvers. Mech-Civ Construction Services, based on Airport Road, Lahore, supplies these items for steel sheds, warehouses and industrial buildings, quoted against your BOQ or drawings.

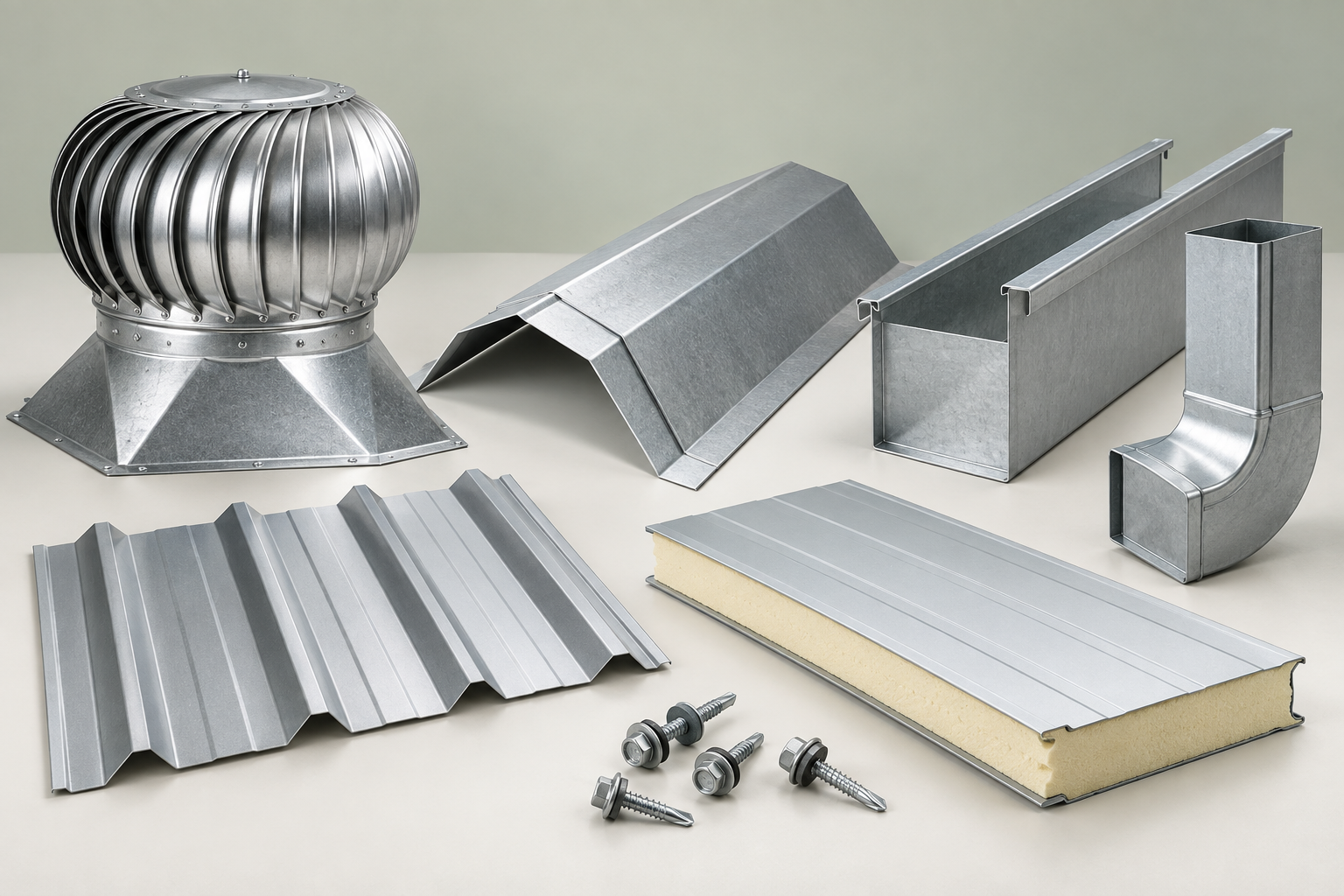

A quick map of the parts we supply and quote, from the foundation bolts to the roof ridge.
Hardware and insulation for fabricators, contractors and warehouse builders. Each item is quoted to the size, grade and quantity in your schedule.

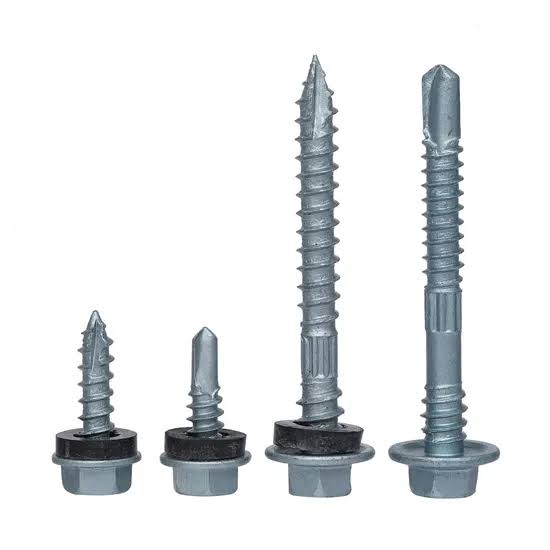

Self-drilling and self-tapping screws for roof sheets, wall cladding and light-gauge steel, with sealing washers where the panel system needs them.

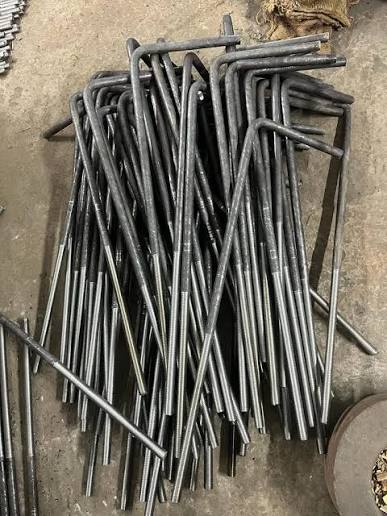

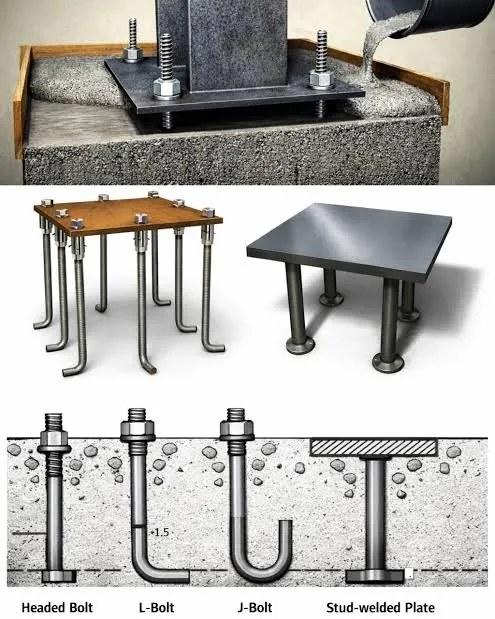

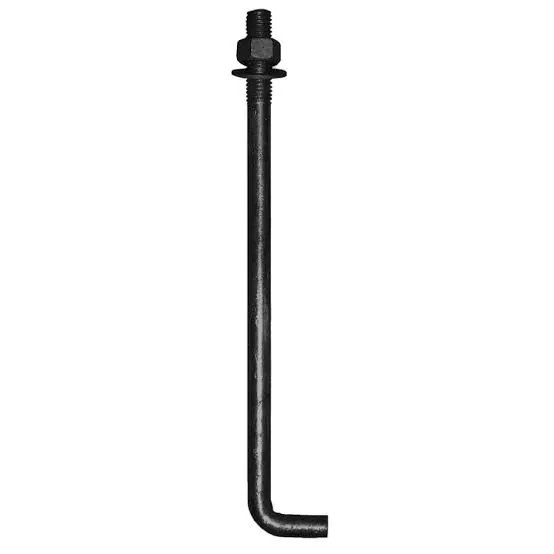

Anchor bolts for PEB column bases, supplied against the approved bolt schedule from your structural drawings.

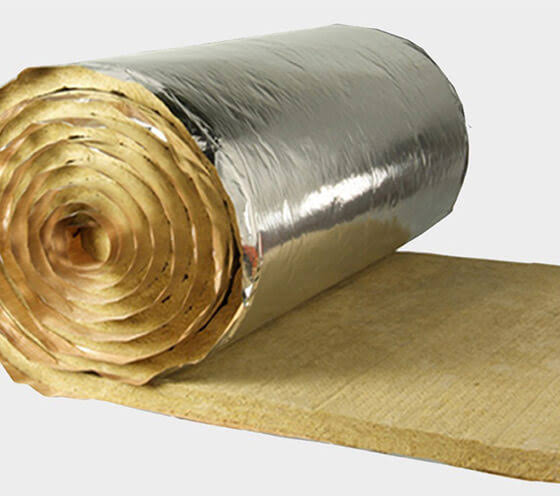

Roll and blanket glass wool for metal roofs and walls, to cut heat gain in Lahore's summer and help control noise and condensation.

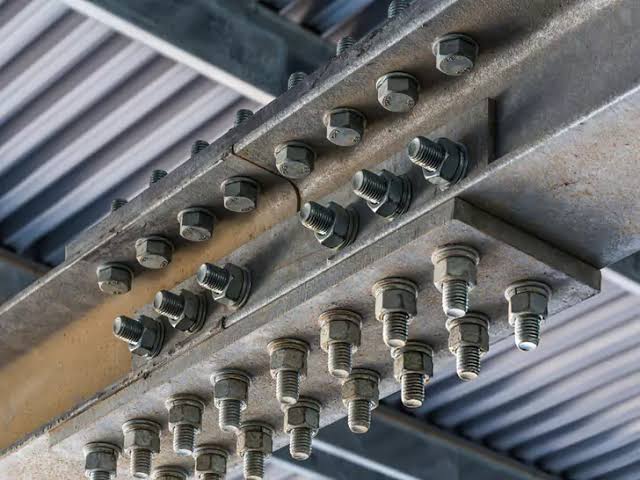

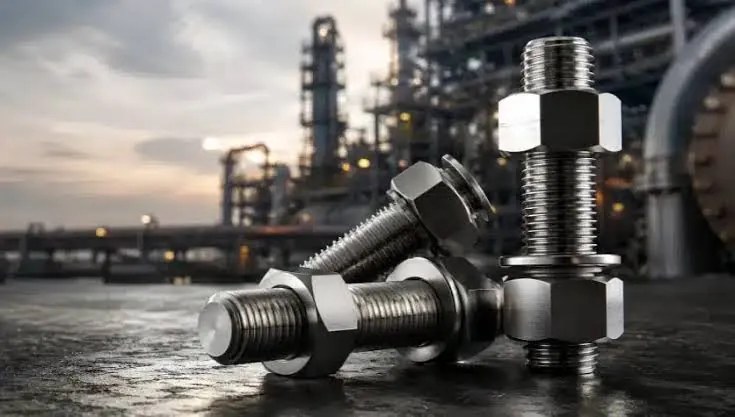

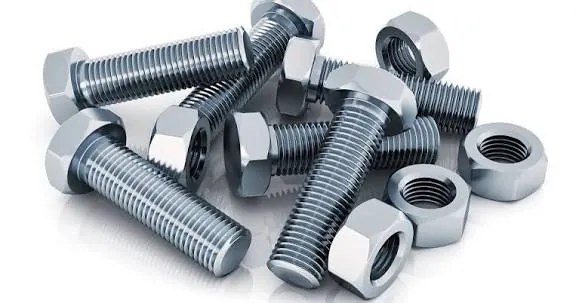

Nuts, bolts and washers for frames, purlins, girts and cladding connections in steel buildings.

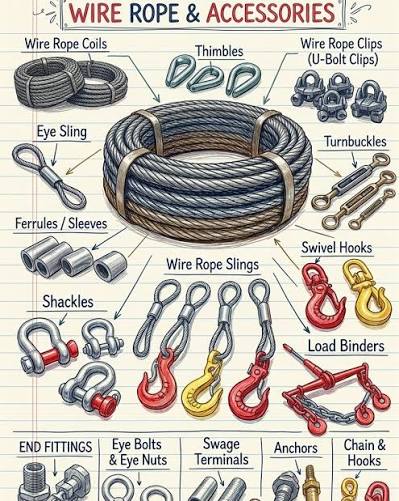

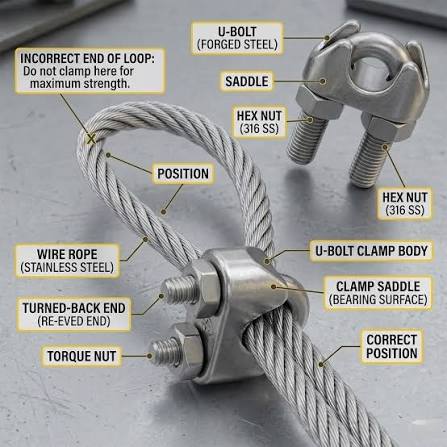

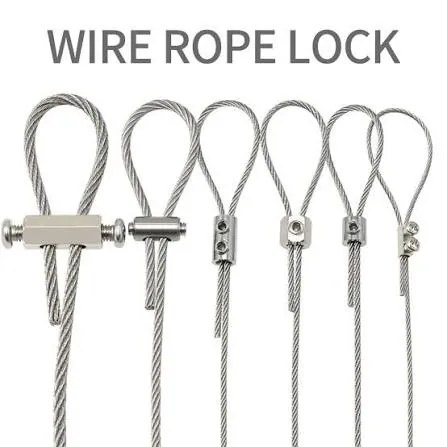

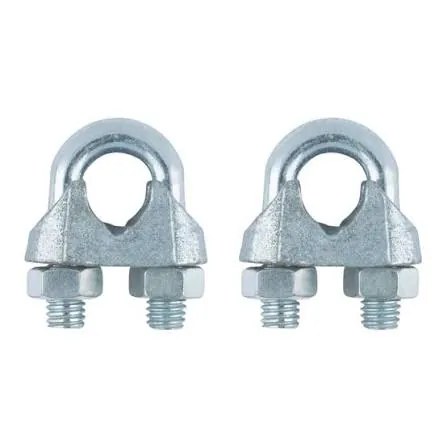

Wire rope for specified construction uses such as bracing and tie arrangements. Lifting use needs suitably rated rope and a competent person.

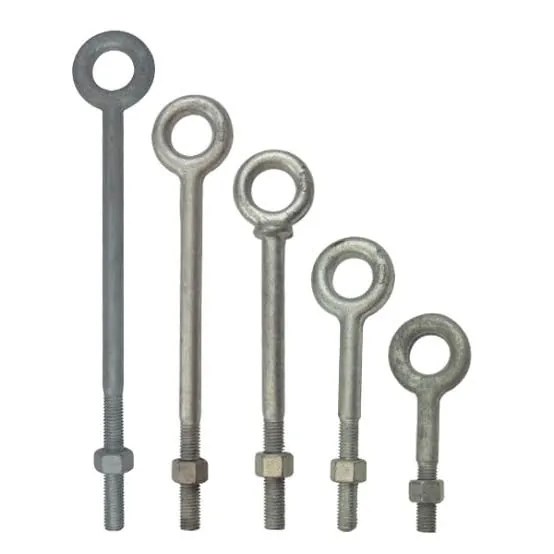

Eye bolts for anchoring and connection details, plus U-clamps and U-bolts for compatible pipe, cable and support arrangements.
Tell us your roof profile and building use. We confirm availability and specification for each item before you order.
Move hot air out of factories and warehouses without electricity. Match throat size and curb to your roof profile.
Enquire →Ridge, eave, gable and corner trims that close roof junctions and keep rain out.
Enquire →Plan rainwater collection for monsoon downpours, with outlets sized to your roof area.
Enquire →Translucent roof panels for natural light and louvers for wall ventilation, matched to your sheet profile.
Enquire →A product name alone is not enough. These details let us price the right item the first time.
| Component | Details to share | What to coordinate |
|---|---|---|
| Roofing screws | Sheet profile, purlin thickness, length, washer, coating | Panel system and corrosion exposure |
| Anchor bolts | Bolt schedule, diameter, length, grade, thread, finish | Approved structural drawings |
| Glass wool | Thickness, density, facing, area | Thermal target, condensation and fire requirements |
| Fasteners | Grade, diameter, length, finish, quantity | Connection design and torque requirements |
| Wire rope & eye bolts | Construction, diameter, length, thread, material, rating | Whether the use is lifting or non-lifting |
| Ventilators | Type, throat size, curb or base profile, quantity | Roof profile and ventilation strategy |
| Flashings & gutters | Profile drawing, developed width, length, thickness, finish | Ridge, eave and downpipe interfaces |
| Delivery | Site location, access, required date, unloading | Packaging, sequence and installation scope |
No standard size, grade or capacity is assumed. Final selection must match your approved project specification. Current sizes, stock, pricing and delivery are confirmed on enquiry.
We work with steel shed, warehouse and factory projects around the city. Tell us your site and we confirm delivery in the quotation.
Outside Lahore? Ask. Delivery to other Punjab cities is confirmed per order.
Send items, quantities, site location and any drawing, BOQ or photo on WhatsApp or email.
We confirm sizes, grades and compatibility with your roof profile and fixing details.
You get pricing, availability and delivery terms, with installation scoped separately if you need it.
Planning the whole building? See our pre-engineered buildings in Lahore and PEB design services in Pakistan.
PEB accessories are the non-structural parts that complete a pre-engineered steel building, such as fasteners, anchor bolts, insulation, ventilators, flashings, gutters, skylights and louvers. They seal, fix, ventilate and drain the building envelope around the main steel frame.
A typical PEB shed needs anchor bolts for the foundation, structural fasteners for the frame, self-drilling screws for roof and wall sheets, insulation, ridge and corner flashings, gutters and downpipes, and ventilation. Skylights and louvers are added where daylight or airflow is required.
Roof and wall sheets are normally fixed with self-drilling screws that have an EPDM sealing washer. The length must pass through the sheet and bite into the purlin, and the coating should suit the exposure. Share the sheet profile, purlin thickness and finish to get the right screw.
Glass wool blanket is commonly laid under metal roof sheets and behind wall cladding to reduce heat gain. Choose thickness, density and facing (plain or foil) from your thermal target, condensation risk and any fire requirements, and ask for the product data sheet.
Prices depend on material, grade, size, coating, quantity and market rates, so they are quoted per enquiry rather than listed. Send your BOQ, drawings or an item list with quantities and Mech-Civ will reply with a quotation.
Yes. Mech-Civ Construction Services is based on Airport Road, Lahore, and supplies accessories to sites across Lahore. Delivery arrangements and any scope beyond Lahore are confirmed in the quotation for your order.
Yes. Send a BOQ, bolt schedule, drawing or even a clear photo list on WhatsApp or email. A quotation against your own schedule is faster and avoids mismatched components.
Often yes, but compatibility must be checked first. Photograph the detail, measure the profile, length and fixing positions, and share them. Similar-looking parts can have different profiles or fixing arrangements.
Only if the item is rated for lifting and used under a competent person's supervision. Wire rope and eye bolts are supplied for the construction use you specify. Confirm the working load limit and standard before choosing any item for lifting.
Mech-Civ also offers pre-engineered buildings, PEB design services and industrial construction in Lahore, so accessories can be planned together with the full building.
Start with the accessory and quantity. Add your site location and any dimensions you already have.
