Diesel Tank Company Serving Gujranwala — 2026 Price Guide for 1,000L, 10,000L & Underground Petrol Pump Tanks

Quick Answer: Diesel & Petrol Tank Price in Gujranwala (2026)

Tank Type	Capacity	Configuration	Indicative Price Range (PKR)*
Diesel/petrol tank	1,000 Litres	Horizontal MS, epoxy-lined	95,000 – 158,000
Diesel/petrol tank	5,000 Litres	Horizontal MS, epoxy-lined	318,000 – 478,000
10,000 litre petrol tank	10,000 Litres	Horizontal MS, epoxy-lined	550,000 – 845,000
Diesel storage tank	20,000 Litres	Vertical MS, epoxy-lined	945,000 – 1,440,000
Petrol pump underground tank	10,000 – 30,000 Litres	Double-wall UST, fibreglass/epoxy-coated	1,200,000 – 2,800,000
Bulk fuel storage tank	50,000+ Litres	Vertical, API 650	Custom quote

*Indicative ranges only. Final price depends on steel plate thickness (gauge), grade of mild steel, internal/external coating spec, fittings (manholes, vents, gauges, dip pipes), and single-wall vs double-wall construction. These ranges already include standard transport from our Lahore fabrication facility to Gujranwala, which is one of the shortest delivery runs from our workshop along the GT Road corridor. Steel sheet prices in Pakistan move with international scrap and billet rates, so always confirm same-week pricing. Request a written, itemised quote — it costs nothing and takes under 24 hours.

Why “Cheapest Diesel Tank in Gujranwala” Is the Wrong Search

Every week, factory owners, generator operators, and fuel station owners across Gujranwala tell us the same story: they bought the lowest-priced tank they could find from a local trader, and within a year they were dealing with a leaking seam, a failed weld, or a rejection during OGRA inspection because the fabricator never used proper internal lining.

A diesel tank is not a commodity item like a water drum — it’s a pressure-tested, code-compliant vessel that has to hold a flammable liquid safely for 20+ years, often underground or right next to a generator hall powering a sanitary ware, electric fan, or cutlery factory along GT Road. The real comparison isn’t “Supplier A’s price vs Supplier B’s price.” It’s “the price of a tank that lasts 25 years vs the cost of replacing, repairing, or — worse — cleaning up after one that fails in year two and shuts down production.”

Here’s what actually drives diesel tank price for Gujranwala buyers, so you can compare quotes properly:

Steel plate thickness — thin-gauge MS sheet is cheaper but flexes, dents, and corrodes faster
Internal lining — diesel tanks need epoxy lining; cutting this step is the #1 cause of early internal corrosion
Welding standard — continuous, inspected welds vs spot welds that look fine until pressure-tested
Single-wall vs double-wall — required for most underground petrol pump installations
Fittings included — manhole, vent pipe, dip/gauge point, drain valve, anti-siphon valve (for USTs)
Testing performed — hydrostatic pressure test and NDT (ultrasonic/radiographic) weld inspection, or none at all
Documentation provided — material test reports and test certificates, which OGRA and your auditors will ask for
Transport and delivery to your Gujranwala site — confirm whether this is included or quoted separately

If a quote is dramatically below the ranges above, ask specifically which of these items has been removed — there’s always a reason a price looks too good.

Diesel Tank Supplier vs Diesel Tank Maker for Gujranwala Buyers

Gujranwala’s fuel-tank market has two very different types of sellers, and most buyers never ask which one they’re dealing with until something goes wrong. This matters even more in a city like Gujranwala, where there’s no shortage of small steel and engineering workshops — but a workshop that fabricates cutlery, fans, or sanitary fittings isn’t necessarily set up to fabricate a pressure-tested fuel tank to the right standard.

Diesel tank suppliers / traders around Gujranwala often buy finished tanks from third-party workshops elsewhere and resell them, or commission a general-purpose metal workshop to weld one up without proper lining or testing. They can sometimes offer a fast quote, but they usually can’t tell you the steel grade used, can’t get a weld re-inspected, and can’t get a fast repair if something’s wrong.

Diesel tank makers / manufacturers, like MCCS, fabricate the tank in their own dedicated workshop. That means we control the steel sourcing, the welding standard, the lining, and the testing — and if anything needs adjusting, you’re talking to the people who built it, not a middleman relaying messages.

If you’re comparing a “diesel tank supplier in Gujranwala” against a “diesel tank maker,” ask the supplier these three questions:

Which workshop physically fabricated this tank, and can I visit it?
Can you provide a hydrostatic test certificate and material test report?
If there’s a weld issue six months from now, who fixes it — you, or do you have to track down your own supplier?

MCCS fabricates every tank at our own Lahore facility (DHA Cantt), with established delivery and erection routes into Gujranwala along the GT Road corridor — so the answer to all three is straightforward: it’s us, every time.

10,000 Litre Petrol Tank Price in Gujranwala — What You’re Actually Paying For

The 10,000 litre petrol tank is one of the most-ordered sizes for Gujranwala clients — it’s the sweet spot for generator backup at sanitary ware and steel manufacturing units, mid-sized fuel retail setups along GT Road, and transport/logistics depots serving the city’s road connection to Lahore, Sialkot, and Gujrat. Because it’s ordered so often, it’s also the size most aggressively underquoted by resellers cutting corners on lining and testing.

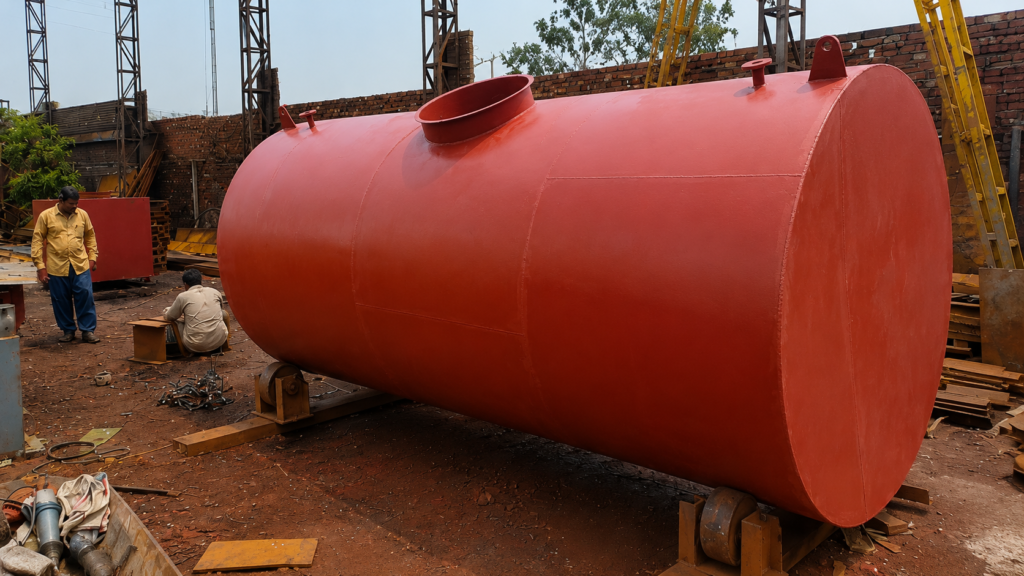

A properly fabricated 10,000L horizontal MS tank for petrol or diesel typically includes:

Mild steel plate (commonly 5–6mm shell thickness for this capacity)
Internal epoxy lining rated for petroleum products
External anti-corrosion primer and topcoat
Standard fittings: manhole, vent pipe, fill point, drain valve, dip/level gauge
Hydrostatic pressure test before dispatch
Material test report and test certificate on request

Indicative price: PKR 550,000 – 845,000, depending on plate gauge, lining spec, and fittings, inclusive of standard delivery into Gujranwala. We provide an itemised, factory-direct quote within 24 hours — call or WhatsApp with your capacity and intended fuel, and we’ll confirm same-day pricing.

1,000 Litre Petrol Tank Price in Gujranwala — Small Capacity, Same Standards

Not every buyer needs a bulk tank. Smaller workshops, single-generator setups, and standby installations across Gujranwala’s dense small-and-medium enterprise sector often need a 1,000 litre petrol tank — and the mistake we see most often here is buyers assuming “it’s small, so quality doesn’t matter as much.” It does. A 1,000L tank still holds a flammable liquid next to equipment or living areas, and a thin-gauge, unlined tank corroding from the inside is exactly as dangerous at this size as it is at 10,000L.

Indicative price: PKR 95,000 – 158,000 for a horizontal MS tank with epoxy lining and standard fittings, delivered to Gujranwala. Smaller capacity doesn’t mean we skip the hydrostatic test — every tank leaving our workshop is pressure-tested regardless of size.

Petrol Pump Underground Tank Price in Gujranwala — UST Requirements Explained

Underground storage tanks (USTs) for petrol pumps are the most regulated and technically demanding tanks we fabricate, because they’re buried, hold a hazardous product, and sit under or near public traffic. If you’re setting up or expanding a fuel retail outlet anywhere in Gujranwala — along GT Road, Gondlanwala Road, Sheikhupura Road, or near the Gujranwala–Wazirabad corridor — your underground tank needs to address all of the following before OGRA will sign off on your site:

Double-wall construction with interstitial space for leak monitoring (single-wall USTs are increasingly difficult to get approved for new petrol pump licensing)
External corrosion protection — fibreglass wrap or fusion-bonded epoxy coating, since the tank sits in contact with soil and groundwater for decades
Anti-siphon and overfill protection fittings
Manhole assembly sized for inspection access
Compliance documentation referencing OGRA’s technical standards for petroleum storage and retail outlet licensing, alongside recognised fabrication codes such as API 650 / BS EN 12285

Because excavation, fitting, and corrosion-protection requirements add real cost, underground tanks price meaningfully higher than an above-ground tank of the same capacity.

Indicative price for a 10,000–30,000L double-wall underground petrol pump tank delivered to Gujranwala: PKR 1,200,000 – 2,800,000, excluding excavation and civil works (which we can also quote as part of a turnkey package, since civil construction is one of our core services).

OGRA’s specific licensing and technical requirements are updated periodically — before finalising your tank order, confirm the current requirements directly with OGRA (ogra.org.pk) or your OMC liaison, and we’ll fabricate to match. We are not a licensing authority and this guide doesn’t replace OGRA’s official technical standards documents.

Get a Custom UST Quote

Diesel Storage Tank vs Diesel Fuel Tank — Is There a Difference?

Buyers often search both “diesel storage tank” and “diesel fuel tank” expecting different products. In practice, the terms describe the same category — a vessel built to hold diesel — but the right specification depends on how it’s used:

Use Case	Typical Term Used	Typical Configuration
Bulk reserve at a depot, factory, or fuel retail site	Diesel storage tank	Vertical or horizontal, 10,000L+, AST or UST
Day tank feeding a single generator	Diesel fuel tank	Horizontal, 500L–5,000L, above-ground
Mobile/transportable fuel supply	Diesel fuel tank	Skid-mounted, smaller capacity
Petrol pump retail dispensing	Diesel storage tank (UST)	Underground, double-wall

Whichever term you use when you call us, what matters is telling us: capacity needed, the fuel (diesel/petrol/HSD), above-ground or underground, and your site location in or around Gujranwala — from that, we recommend the right configuration rather than selling you a generic size. This matters particularly for Gujranwala’s light engineering and SME sector, where many small and medium units run a single generator and need a correctly sized day tank rather than an oversized bulk tank they don’t need.

Where We Deliver Diesel Tanks Across Gujranwala

Our fabrication workshop is in Lahore (DHA Cantt), and our logistics and erection teams regularly deliver and install diesel and petrol tanks across Gujranwala’s industrial corridor — one of the shortest and most established delivery routes from our facility — including:

Industrial & manufacturing zones: Small Industrial Estate No. 1, GT Road industrial belt, Gondlanwala Road manufacturing cluster, Sheikhupura Road industrial area, Eminabad Road.

Major commercial corridors: GT Road (Grand Trunk Road), Sialkot Bypass, Wazirabad Road, Hafizabad Road, Sheranwala Bagh and city-centre commercial zones.

Surrounding region: Wazirabad, Kamoke, and the wider Gujranwala–Gujrat–Sialkot “Golden Triangle” industrial belt — all served from our Lahore facility with standard heavy-transport delivery, typically within 24–48 hours of dispatch given the relatively short distance.

Wherever your fuel retail outlet, factory generator installation, or industrial site sits in or around Gujranwala, our team can survey, quote, fabricate, deliver, and install on the same contract.

How to Choose a Diesel Tank Company for Your Gujranwala Project — A Buyer’s Checklist

Before you place an order with any diesel tank company, supplier, or maker for a Gujranwala delivery, run through this checklist:

Can they show you their workshop? A genuine maker has a physical fabrication facility you can visit before paying any advance — even if it’s in Lahore rather than Gujranwala itself.
Will they put the steel grade and plate thickness in writing? Verbal assurances aren’t a substitute for a quote that names the specification.
Do they hydrostatically pressure-test every tank — or only on request, or never?
Is internal epoxy lining included, or is it an upsell you have to ask for separately?
Can they provide a material test report (MTR) if your auditor, bank, or OGRA inspector asks for one?
What’s the written delivery timeline to Gujranwala, and is it backed by a contract — not just a verbal promise?
Do they offer installation and commissioning on-site in Gujranwala, or do you need to find a separate contractor to fit the tank once it arrives?
What happens if there’s a fabrication issue after delivery — is there a written warranty, and who actually does the repair?

MCCS answers “yes” to all eight, with our workshop open for inspection in DHA Cantt, Lahore, established delivery routes into Gujranw

ala, and 35+ years of fabrication history behind every answer.

Frequently Asked Questions

What is the diesel tank price in Gujranwala for a 10,000 litre capacity? A 10,000 litre diesel or petrol tank delivered to Gujranwala typically ranges from PKR 550,000 to 845,000, depending on plate thickness, internal lining, and fittings, inclusive of standard delivery. Factory-direct fabricators like MCCS can usually offer a more competitive price than local resellers because there’s no middleman markup. Call 0321-8771689 for a same-day itemised quote.

How much does a 1,000 litre petrol tank cost in Gujranwala? A 1,000 litre petrol or diesel tank, horizontal MS with epoxy lining and standard fittings, typically costs PKR 95,000 to 158,000 delivered to Gujranwala. Even at this smaller capacity, a hydrostatic pressure test and proper internal lining should be standard, not optional extras.

What is the price of an underground tank for a petrol pump in Gujranwala? Underground petrol pump tanks cost significantly more than above-ground tanks of the same capacity because of double-wall construction, external corrosion protection, and additional fittings required for safe burial. A 10,000–30,000 litre double-wall UST delivered to Gujranwala typically ranges from PKR 1,200,000 to 2,800,000, excluding excavation and civil works.

Is MCCS a diesel tank manufacturer or a supplier/reseller? MCCS is a manufacturer — we fabricate every diesel and fuel storage tank at our own workshop in DHA Cantt, Lahore, with established delivery into Gujranwala’s industrial corridor. We are not a trading company reselling tanks sourced from elsewhere, which means we control steel sourcing, welding quality, lining application, and testing from start to finish.

Do diesel tanks for Gujranwala petrol pumps need to meet OGRA requirements? Yes. Any tank installed at a licensed petrol pump or fuel retail outlet in Pakistan needs to meet OGRA’s technical standards for petroleum storage. Requirements can be updated by OGRA from time to time, so always confirm current requirements with OGRA or your OMC before finalising a tank order — we fabricate to match whatever the current specification requires.

Can MCCS install the diesel tank on-site in Gujranwala, or do I need a separate contractor? MCCS handles fabrication, delivery, and on-site installation/commissioning as one contract — including civil and excavation work for underground tanks, since civil construction is one of our core in-house services. You don’t need to coordinate separate contractors for different stages, even though our workshop is based in Lahore.

How long does it take to get a diesel tank delivered to Gujranwala? Standard above-ground diesel tanks (1,000–10,000 litres) are typically fabricated within 2–4 weeks of confirmed order, with delivery to Gujranwala taking as little as 24 hours by heavy transport given the short distance from our Lahore workshop. Underground double-wall tanks and larger custom capacities may take 4–8 weeks to fabricate. We provide a written delivery timeline with every confirmed order.

Can a general engineering workshop in Gujranwala fabricate a diesel tank instead? Technically, many of Gujranwala’s steel and engineering workshops can weld a tank-shaped vessel — but fabricating a tank that’s properly lined, hydrostatically tested, and documented for fuel storage is a different discipline from general sheet metal or cutlery fabrication. Always confirm testing and lining specifically, regardless of how capable the workshop looks for other products.

Get Your Diesel Tank Quote Today — Serving Gujranwala Since 1988

Whether you need a 1,000 litre day tank, a 10,000 litre bulk diesel tank, or a fully compliant underground tank for a petrol pump in Gujranwala, MCCS fabricates it in our own Lahore workshop — with hydrostatic testing, written documentation, and installation support included, delivered directly to your Gujranwala site.

Tell us: capacity needed, fuel type (diesel/petrol/HSD), above-ground or underground, and your location in Gujranwala — we’ll respond with an itemised quote within 24 hours.

📞 Call/WhatsApp: 0321-8771689 | 0300-8401768 ✉️ Email: Mechciv.construction@gmail.com 📍 Workshop: Suit #2, Khursheed Plaza, Main Boulevard DHA Lahore Cantt, Lahore, Punjab
