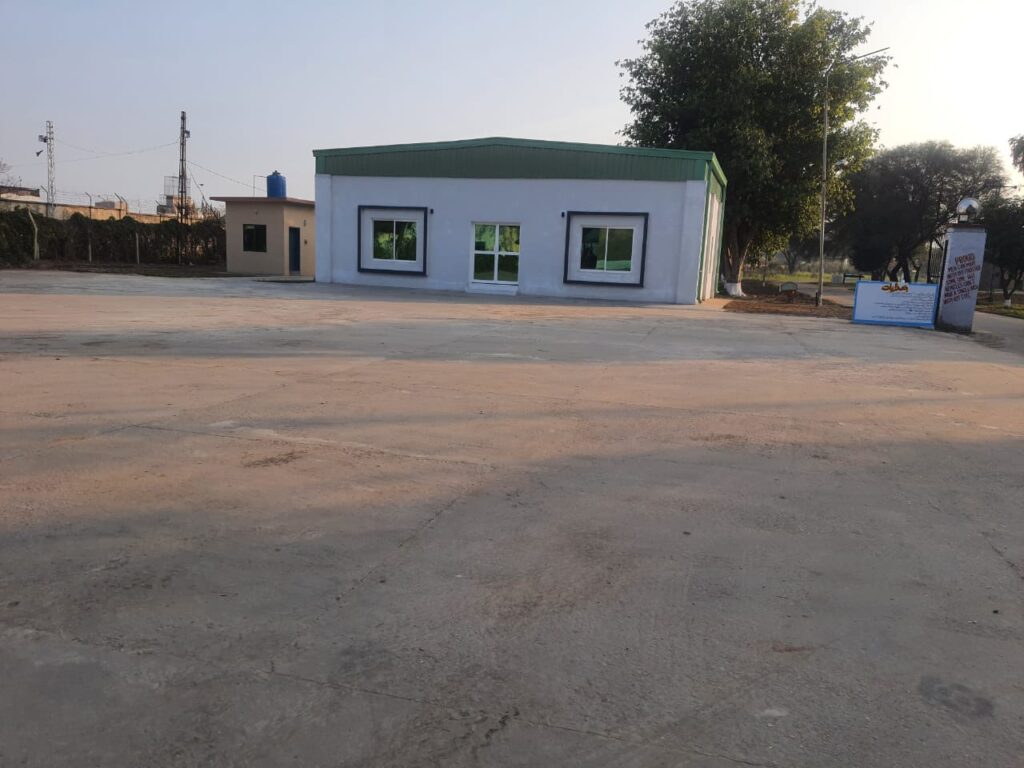

Factory Shed & Industrial Building Construction Cost in Punjab, Pakistan (2026) — Complete Price Guide for Lahore, Sheikhupura, Gujranwala & Kasur
By MECH-CIV Construction Services (MCCS) | Updated: June 2026 | 12 min read
Quick Answer: Industrial factory shed construction in Punjab costs PKR 800 – 3,500 per sq.ft. depending on structure type, span, insulation, and your district. MECH-CIV provides free detailed BOQ quotations within 24 hours — call 0321-8771689 or WhatsApp now.
Why Are Factory Owners in Punjab Searching for This in 2026?
Punjab is in the middle of an industrial expansion wave. From the Ring Road Industrial Belt in Lahorhttps://mechcivconstruction.com/
e to the Sundar Industrial Estate in Raiwind, from Sheikhupura’s textile clusters to Gujranwala’s manufacturing corridors — factory and warehouse construction inquiries are at a record high in 2026.
The reason is straightforward: steel pre-engineered buildings (PEB) have become the dominant construction method for Punjab’s industrial sector, replacing slow, expensive conventional RCC construction. Factory owners, warehouse operators, dairy farmers, and logistics companies across Lahore, Sheikhupura, Kasur, and Gujranwala are now asking the same urgent question:
“What will it actually cost me to build a factory shed in Punjab today?”
This guide answers that question in full — with real numbers, real breakdowns, and guidance specific to Punjab’s major industrial districts. This is not a vague national estimate. These are the rates MECH-CIV Construction Services (MCCS) — established in Lahore since 1988 — actually charges for turnkey industrial shed projects across Punjab.
What Is a Pre-Engineered Factory Shed? (And Why Punjab Is Choosing PEB in 2026)
A pre-engineered building (PEB) or factory shed is a steel-frame structure where every component — columns, rafters, purlins, roofing sheets, wall cladding — is computer-designed, factory-fabricated, and then assembled at your site.
PEB vs. Conventional RCC Construction — Punjab 2026 Comparison
| Factor | PEB Factory Shed | Conventional RCC Shed |
|---|---|---|
| Cost per sq.ft. (basic) | PKR 800 – 1,800 | PKR 2,800 – 4,500 |
| Construction time | 4 – 8 weeks | 6 – 14 months |
| Column-free span | Up to 90 metres | Max 15 – 20 metres |
| Future expansion | Simple — add bays | Expensive, disruptive |
| Engineering certification | Full structural drawings | Often without stamped design |
| Resale / relocation | Structure has resale value | No |
For industrial users in Punjab — where land costs in Sheikhupura, Kasur, and Muridke are rising fast — the ability to build faster, cheaper, and wider than RCC makes PEB the practical choice for almost every new factory or warehouse project in 2026.
Factory Shed Construction Cost in Punjab — 2026 Price Breakdown
The table below reflects current MECH-CIV rates for turnkey factory shed and industrial building projects across Punjab, inclusive of structure, roofing, erection, and civil foundations.
MCCS Punjab Industrial Shed Price Guide — June 2026
| Shed Type | Typical Span | Price Range (PKR/sq.ft.) | What’s Included |
|---|---|---|---|
| Basic Industrial Shed | 15m – 30m | 800 – 1,400 | Steel frame, single-skin roofing, erection |
| Standard Factory Shed | 20m – 45m | 1,000 – 1,800 | Frame, colour-coated cladding, gutters, ventilation ridge |
| Insulated Warehouse | 30m – 60m | 1,400 – 2,500 | Sandwich panel roofing, insulated walls, mezzanine option |
| Cold Storage PEB | Custom | 2,500 – 4,500 | PUF/EPS insulation panels, temperature-controlled spec |
| Dairy / Poultry Shed | 20m – 50m | 600 – 2,200 | Custom ventilation design, livestock-optimised layout |
| Auto Workshop / Showroom | 20m – 40m | 1,200 – 2,400 | Full enclosure, skylights, roller shutter door provisions |
| Multi-Span Industrial Complex | 50m – 100m+ | 1,000 – 2,800 | Multiple spans, valley beams, EOT crane provision |
Note: All prices are indicative for Punjab sites within 50km of Lahore. Sites in Gujranwala, Faisalabad, Sialkot, and Multan may carry a modest logistics supplement. Request a free site-specific BOQ — prices valid within 30 days of quotation.
Cost by Location — What Does a Factory Shed Cost in Your Punjab District?
One of the most common questions MCCS receives is whether shed prices differ across Punjab’s industrial districts. Here is a district-by-district breakdown for 2026:
Lahore (Including Sundar Industrial Estate, Quaid-e-Azam Industrial Estate, Kot Lakhpat, Raiwind Road)
Lahore is MCCS’s home base. All projects within the Lahore district — including SITE Town, Quaid-e-Azam Industrial Estate, Manga Mandi, and the Raiwind Road corridor — fall within our zero-supplement zone. Quoted rates are delivered prices inclusive of erection team travel.
Typical factory shed cost in Lahore 2026: PKR 900 – 2,500/sq.ft. depending on specification.
Sheikhupura (Including Sundar Industrial Estate, Muridke, Nankana Sahib)
Sheikhupura is one of Punjab’s most active industrial growth zones in 2026, with textile, food processing, pharmaceutical, and auto-parts manufacturers expanding rapidly along the Lahore–Sheikhupura motorway corridor. MCCS serves all of Sheikhupura district with same-day site visit capability.
Why Sheikhupura factory owners choose PEB in 2026: Land in Sheikhupura Industrial Estate and Sundar Industrial Estate (which sits on the Lahore-Sheikhupura border) is at a premium — factory owners need to maximise every square foot of built space. PEB’s column-free spans up to 90 metres mean no internal pillars consuming usable floor area.
Typical factory shed cost in Sheikhupura 2026: PKR 850 – 2,200/sq.ft. | Same-day site visit available.
Gujranwala (Including Gujranwala Industrial Estate, Wazirabad, Kamoke)
Gujranwala is Punjab’s second-largest industrial city and a dominant centre for steel re-rolling, ceramics, food processing, and light engineering. MCCS has delivered over 40 projects in Gujranwala district since 1988, including large-span warehouse complexes for distribution companies and multi-bay factory sheds for manufacturing operations.
Gujranwala-specific note: The Punjab government’s 2026 development drive includes major infrastructure upgrades in Gujranwala, including 131km of new sewerage lines and industrial support works — meaning construction activity and contractor availability are both elevated this year. Booking MCCS early ensures your project timeline is protected.
Typical factory shed cost in Gujranwala 2026: PKR 900 – 2,400/sq.ft. | Moderate logistics supplement may apply.
Kasur (Including Chunian, Pattoki, Industrial Areas along GT Road)
Kasur district has emerged as a significant industrial and agro-processing zone in 2026. Tanneries, rice mills, cotton ginning factories, and cold storage operators are the primary users of PEB technology in Kasur. MCCS regularly serves Kasur, Chunian, and Pattoki for both industrial shed and steel storage tank projects.
Typical factory shed cost in Kasur 2026: PKR 850 – 2,200/sq.ft.
Other Punjab Districts (Faisalabad, Sialkot, Multan, Sargodha)
MCCS serves all of Punjab. For projects in Faisalabad, Sialkot, Gujrat, Multan, and Sargodha, a logistics supplement of PKR 80 – 200/sq.ft. typically applies depending on project size and distance. For large projects (10,000 sq.ft. and above), MCCS erection teams are mobilised on a full-project basis — logistics cost becomes negligible.
What Drives Factory Shed Cost in Punjab? 7 Key Factors
Understanding what moves the price up or down helps you budget accurately and make informed decisions when comparing quotations.
1. Span Width (The Single Biggest Cost Driver)
Wider spans require heavier steel sections. A 15-metre-wide basic shed costs significantly less per sq.ft. than a 45-metre-wide clear-span warehouse — because the portal frames must resist higher loads. This is why quoting “per sq.ft.” without knowing the span is meaningless. Always ask your contractor to specify the span in the BOQ.
MCCS rule of thumb: Every 10 metres of additional span adds approximately PKR 100 – 200/sq.ft. to the steel structure cost.
2. Eave Height (Column Height)
A shed with 6-metre columns requires less steel than one with 10-metre or 12-metre columns. Taller buildings — needed for overhead cranes, stacking high-bay racks, or large vehicle clearance — increase steel tonnage and foundation loads.
3. Roofing and Insulation Choice
This is where the biggest visible cost difference lies between shed types:
- Bare Galvalume single-skin sheet: Cheapest, no insulation, suitable for open-sided sheds and agricultural applications
- Colour-coated single-skin sheet: Standard factory finish, +PKR 80 – 150/sq.ft. over bare Galvalume
- Insulated sandwich panel (EPS/PUF): Temperature regulation, sound insulation, +PKR 400 – 1,200/sq.ft. over single-skin depending on panel thickness
4. Foundation Type and Civil Works
A basic 15m-span shed on firm ground needs a simple strip footing. A 45m-span multi-bay warehouse in Sheikhupura’s industrial zone with an EOT crane needs heavily reinforced pad foundations with precision anchor bolts. Civil works typically represent 15 – 25% of total project cost.
MCCS’s civil division handles all foundation work in-house — this eliminates the coordination delays and cost surprises that arise when a separate civil contractor is used.
5. Accessories: Doors, Windows, Skylights, Ventilation
Ridge ventilators, turbo vents, translucent skylights (natural lighting), roller shutter doors, and personnel doors are not always included in “per sq.ft.” prices. MCCS’s BOQ itemises every accessory separately — no surprises.
6. EOT Crane Provisions
If your factory needs an overhead travelling crane, the steel structure must be designed for it from the outset — with crane beams, brackets, and columns sized for the crane load. Retrofitting crane provisions after construction is expensive. Always disclose crane requirements during the design stage.
7. Site Location and Access
Projects in Lahore and within 50km incur no travel supplement. Remote sites, narrow access roads, or sites requiring overnight accommodation for erection teams add to logistics cost. MCCS provides fully transparent site-based quotations — no hidden additions after contract signing.
Factory Shed vs. Warehouse vs. Dairy Shed — Which PEB Type Do You Need?
| Application | Recommended PEB Type | Key Design Features |
|---|---|---|
| Manufacturing factory | Standard or heavy PEB | Heavy-duty floor, crane provision, wide-span |
| Warehouse / distribution | Insulated PEB or clear-span | Clear span max, dock levellers, high bay |
| Cold storage | Insulated PEB + refrigeration | PUF panels, vapour barrier, specialised doors |
| Dairy farm shed | Open-sided ventilated PEB | Cross-ventilation, drainage, cow comfort width |
| Poultry farm | Enclosed ventilated PEB | Controlled airflow, biosecurity layout |
| Auto workshop | Standard enclosed PEB | Roller shutters, inspection pit provisions |
| Textile unit | Multi-bay PEB | Column-free large bays, roof monitors |

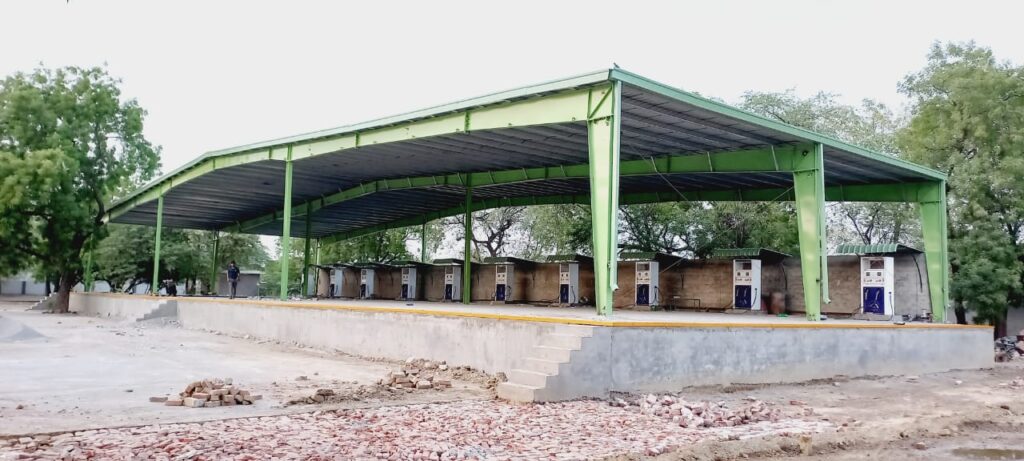

| Petrol pump canopy | Cantilever / canopy structure | Fuel resistance, large overhang, illumination |
How MECH-CIV Calculates Your Factory Shed Quote — The Transparent BOQ Process
Unlike many contractors who provide a single lump-sum number with no breakdown, MCCS provides a complete Bill of Quantities (BOQ) with every quotation. This includes:
- Structural steel — tonnage, grade, section sizes
- Roofing and cladding — sheet type, area, accessories
- Civil foundations — concrete volume, anchor bolt specification
- Erection — labour, equipment, timeline
- Transport — delivery to your Punjab site
- Accessories — every door, vent, gutter, and downpipe itemised
This BOQ is your protection. When you receive three quotations and one is 30% cheaper, the BOQ tells you exactly what has been omitted — whether it’s lighter steel sections, thinner roof sheets, or a foundation specification that will crack within five years.
MCCS provides free BOQ quotations within 24 hours for standard Punjab projects.
Hyper-Local Guide: Industrial Zones MCCS Serves Across Punjab
MCCS erection teams serve every major industrial zone in Punjab. Here are the key locations where we regularly deliver factory shed projects:
Lahore: DHA Industrial, Quaid-e-Azam Industrial Estate (QAIE), Sundar Industrial Estate, Kot Lakhpat, Raiwind Road, Manga Mandi, Ferozpur Road industrial corridor, Ring Road belt
Sheikhupura District: Sheikhupura Industrial Estate, Muridke, Safdarabad, Nankana Sahib, Sharaqpur
Gujranwala District: Gujranwala Industrial Estate, Kamoke, Wazirabad, Hafizabad, Nowshera Virkan
Kasur District: Kasur city, Chunian, Pattoki, Phool Nagar, Kot Radha Kishan
Faisalabad: Faisalabad Industrial Estate, M-3 Industrial City, Jaranwala
Sialkot: Sialkot Industrial Estate, Daska, Sambrial
Other Punjab: Sargodha, Multan, Gujrat, Mandi Bahauddin — covered under national project rates
Why Choose MECH-CIV for Your Punjab Factory Shed Project?
MECH-CIV Construction Services has been building factory sheds, industrial warehouses, and steel structures across Punjab since 1988 — 37 years of continuous operation from the same Lahore workshop. Here is what that track record means for your project:
Local presence, not a call centre: Our workshop is in Lahore (DHA Cantt). Our engineering team can visit your Sheikhupura, Kasur, or Gujranwala site the same day you call. Design queries, site issues, and material questions are resolved in hours, not days.
In-house fabrication — no middlemen: Our steel is fabricated in our own Lahore workshop. We do not outsource to sub-fabricators. This means consistent quality, controlled timelines, and direct accountability.
Structural engineering in-house: Every MCCS project is designed by our own engineers using SAP2000 and AutoCAD, with stamped drawings. We do not use generic templates — your span, your loads, your site conditions determine your structure.
API 650 and ASME certified: The same quality standards that govern our storage tank fabrication apply to every weld and material certificate on our structural projects.
37 years of Punjab project history: We have delivered projects for Lahore’s largest dairy operators, Gujranwala’s biggest warehouse operators, Sheikhupura’s textile mills, and Kasur’s agro-processing factories. Our reference list is 500+ projects long — and every one is in Punjab.
Frequently Asked Questions — Factory Shed Cost in Punjab
Q: What is the cheapest factory shed I can build in Punjab in 2026?
A basic open-sided agricultural or storage shed in a rural Punjab location — 15m span, single-skin Galvalume roofing, no insulation, basic concrete strip footing — can be completed from PKR 700 – 900/sq.ft. This is the starting price for a structurally sound, professionally engineered PEB shed. Below this range, structural integrity is typically compromised.
Q: How long does it take to build a factory shed in Sheikhupura or Gujranwala?
MCCS’s typical timeline for a standard 10,000 – 30,000 sq.ft. factory shed in Sheikhupura or Gujranwala is 5 – 8 weeks from design approval to handover. Fabrication in our Lahore workshop runs simultaneously with civil foundation works on your site, eliminating sequential waiting.
Q: Can I build a factory shed in phases — start small and expand later?
Yes — and PEB is specifically designed for future expansion. When MCCS designs your structure, we engineer the end frames for future bay additions. Expanding is as simple as adding new portal frames and extending the roofing. We have clients in Sheikhupura who started with a 5,000 sq.ft. shed in 2010 and are now at 40,000 sq.ft. — all MCCS expansions.
Q: Is a MECH-CIV factory shed safe for heavy machinery and overhead cranes?
Yes. MCCS designs and fabricates PEB structures with overhead crane (EOT) provisions as a standard option. Crane loads are factored into column and rafter sizing from the initial structural design. We have delivered factory sheds with up to 20-tonne overhead cranes across Lahore and Gujranwala.
Q: Do I need local authority NOC or approval for a factory shed in Punjab?
Yes. In Punjab, industrial buildings require approval from the relevant authority — LIEDMC (Lahore), Sheikhupura Industrial Estate management, Gujranwala Development Authority, or the relevant EPA. MCCS provides complete stamped structural drawings that meet local authority requirements. We guide clients through the submission process.
Q: What is MECH-CIV’s payment terms for factory shed projects?
MCCS uses a milestone-based payment structure: deposit on contract signing, progress payments at fabrication completion and structural erection, and final payment at handover. Full BOQ pricing is agreed in writing before work commences — no mid-project revisions.
Get Your Free Factory Shed Quotation — Same Day Response
If you are planning a factory shed, industrial warehouse, dairy farm building, or any steel structure in Lahore, Sheikhupura, Gujranwala, Kasur, or anywhere in Punjab — contact MECH-CIV Construction Services today for a free, detailed BOQ quotation.
What to tell us for your quotation:
- Your district and site location
- Required floor area (sq.ft. or kanals/marlas)
- Required span width (if known)
- Building use (factory, warehouse, dairy, cold storage, etc.)
- Any special requirements (crane, insulation, mezzanine)
