What is a PEB Shed — and Why Everyone in Lahore’s Industrial Sector is Switching?

A Pre-Engineered Building (PEB) shed is a steel structure where all components — columns, rafters, purlins, girts, cladding — are precision-designed using structural software and fabricated in a factory under controlled conditions. Unlike a traditional RCC or site-welded steel shed, every piece arrives at your site cut to length, drilled, and painted. Your team simply bolts it together.

PEB technology, originally developed for North American and European industrial markets, has become the dominant choice for factory sheds, warehouse buildings, cold storage, and industrial facilities across Lahore and Pakistan because it solves the three biggest problems industrial buyers face: cost overruns, time delays, and structural uncertainty.

The Core Advantage

PEB sheds cost 40–50% less than RCC construction and are ready to occupy in 25–45 days rather than 4–6 months. For a factory owner in Lahore, that means starting production months earlier — and saving millions on construction costs.

For businesses searching for “industrial shed manufacturers in Lahore” or “best PEB shed manufacturer in Lahore”, understanding what PEB is — and what separates a quality manufacturer from a low-cost fabricator — is the first step to a successful project.

Why PEB Sheds Beat Traditional Construction — 7 Proven Reasons

If you’re comparing a pre-engineered building shed against a conventional brick-and-mortar or site-fabricated steel structure, here is every advantage PEB offers for industrial buyers in Pakistan:

⏱

Faster Delivery

Most PEB sheds are designed, fabricated, and erected within 25–45 days. Traditional construction takes 4–7 months.

💰

Lower Cost

Starting at PKR 1,800/sq.ft vs PKR 4,000+ for RCC. Optimised steel design saves 30–40% on material weight.

📐

Wide Clear Spans

PEB allows column-free spans of up to 90 feet, essential for factory floors with machinery or overhead cranes.

🔩

Factory Quality Control

Every piece is fabricated in a controlled environment — consistent welds, precise dimensions, uniform paint. No surprises on site.

🔧

Expandable Design

Need to extend your shed in 3 years? PEB structures are designed to be expanded — add bays or extend the length without demolition.

🌧

Weather & Seismic Resistance

Engineered for Lahore’s wind loads and Pakistan’s seismic zones. Properly designed PEB sheds meet ASCE / local building code requirements.

Types of Industrial Sheds Mech-Civ Manufactures in Lahore

Not every shed serves the same purpose. Mech-Civ Construction Services designs and builds the full range of industrial shed types demanded by Lahore’s manufacturing, logistics, textile, food processing, and agro-industrial sectors.

Factory Manufacturing Shed

From PKR 800-1200/sq.ft

Heavy machinery floors (high live loads)
EOT overhead crane beam integration
Wide clear spans (40–90 ft)
Skylights & ridge ventilation
Mezzanine floor options
Textile, pharmaceutical, food factories

Warehouse & Storage Shed

From PKR 1,800/sq.ft

High eave heights for pallet racking
Dock levellers & loading bay design
Wide column spacing for logistics
Insulated cladding options
Fire-rated panels available
Logistics, e-commerce, FMCG, retail

Cold Storage Building

Custom quote

PIR/PUF insulated sandwich panels
Airtight door & dock seal systems
Vapour barriers & thermal breaks
Refrigeration-compatible structure
HACCP-compliant internal finishes
Food, pharmaceutical, dairy cold chain

Agricultural & Dairy Shed

From PKR 1,500/sq.ft

Open-sided natural ventilation design
Anti-rust galvanized structure
Cow comfort & airflow engineering
Slurry channel integration
Wide roof overhang for shade
Dairy farms, poultry, agro-processing

Commercial & Retail Steel Building

Custom quote

Architectural façade cladding
Showroom & workshop formats
Mezzanine floors & partitioning
Signage & branding integration
Fast delivery for franchise roll-out
Auto workshops, service centres, retail

Steel Marquee Hall

Custom quote

Wide clear span for wedding halls
Decorative cladding & false ceiling
Ventilation & AC duct integration
Electrical conduit integration
Permanent & semi-permanent options
Wedding halls, exhibition, sports

PEB Shed Price in Lahore & Pakistan (2025 Updated Rates)

The most common question from industrial buyers is: “How much does a PEB shed cost in Lahore?” Below is a transparent, up-to-date pricing breakdown. All prices are factory-direct from Mech-Civ — no agent markups.

Important Note on Pricing

Prices below are indicative for budgeting purposes. Your actual price depends on shed size, span, eave height, crane loads, cladding type, insulation, and site location. Mech-Civ provides free detailed quotations after a site visit — no obligation.

Shed Type	Structure + Cladding	Foundation (est.)	Total Turnkey
PEB Structure (standard)	PKR 800/sq.ft	PKR 270–400/sq.ft	PKR 2,100–2,200/sq.ft
Factory / Manufacturing Shed	PKR 2,000–2,200/sq.ft	PKR 300–450/sq.ft	PKR 2,300–2,650/sq.ft
Warehouse / Storage Building	PKR 1,900–2,100/sq.ft	PKR 280–420/sq.ft	PKR 2,200–2,520/sq.ft
Insulated Cold Storage	PKR 2,400–3,200/sq.ft	PKR 350–500/sq.ft	PKR 2,750–3,700/sq.ft
Agricultural / Dairy Shed	PKR 1,500–1,800/sq.ft	PKR 200–350/sq.ft	PKR 1,700–2,150/sq.ft
RCC Traditional (comparison)	N/A — site-built		PKR 4,000–5,500/sq.ft

* All prices in PKR per square foot. Prices include structure, cladding, ridge vent, gutters & downspouts, and erection. Excludes flooring, electrical, plumbing, & civil works unless specified. Foundation price is an estimate — final cost after soil investigation. Rates subject to steel market fluctuations. Updated June 2025.

Sample Project Cost Estimates

Project Size	Type	Estimated Total Cost (PKR)
2,000 sq.ft	Small workshop shed	PKR 42 lakh – PKR 50 lakh
5,000 sq.ft	PEB warehouse / factory	PKR 1.05 crore – PKR 1.25 crore
10,000 sq.ft	Industrial shed (PEB)	PKR 1.8 crore – PKR 2.2 crore
25,000 sq.ft	Large factory / warehouse	PKR 4.5 crore – PKR 6.5 crore
50,000 sq.ft	Industrial complex	PKR 9 crore – PKR 13 crore

* Sample estimates for budgeting guidance only. Contact Mech-Civ for a site-specific quotation.

The Biggest Pain Points of Industrial Shed Buyers in Lahore — and How Mech-Civ Solves Them

After working with factory owners, warehouse operators, and developers across Lahore and Pakistan, we know exactly what keeps buyers up at night when commissioning an industrial shed. Here are the 7 most common pain points — and what Mech-Civ does differently.

“The price kept changing during construction.”

Mech-Civ gives fixed lump-sum quotations. Your price is locked once you sign — no surprise additions mid-project.

“The shed was not ready on time — I lost months of production.”

Our PEB factory-fabrication model means site work is just bolting. Most sheds are up in 25–45 days from approval. We offer penalty clauses for delays.

“The roof leaks / the structure rusted within 2 years.”

We use high-tensile galvanized purlins, colour-coated Tata / NSSMC steel sheets, and factory-applied primer. 10-year structural warranty available.

“No one gave me a proper design or structural drawing.”

Every Mech-Civ project comes with stamped structural drawings, 3D render, and a bill of quantities — before you commit a single rupee.

“I couldn’t install an overhead crane because the structure wasn’t designed for it.”

We design crane-ready PEB sheds with integrated runway beams from day one. 2-ton to 30-ton EOT cranes — tell us your requirement at the quoting stage.

“I need a bigger shed now but can’t expand because of the original design.”

All Mech-Civ sheds are designed with future expansion in mind. Adding bays or extending the length is straightforward — no demolition needed.

“The contractor disappeared after taking advance payment.”

Mech-Civ is a registered company with a fixed address in Lahore, completed projects you can visit, and a milestone-based payment schedule — so your money is always tied to work done.

People also search:peb shed price in Lahorefactory shed manufacturer Lahoreindustrial shed cost per sq ft Pakistansteel warehouse shed LahorePEB structure contractor Lahorepre engineered building Pakistanoverhead crane shed manufacturercold storage shed Lahore

How Mech-Civ Builds Your Industrial Shed — 6-Step Process

We follow a transparent, milestone-based process from your first call to handing you the keys — so you always know what is happening and when:

1Free Site Survey & Requirement AnalysisOur engineer visits your site in Lahore (or anywhere in Pakistan) to assess soil conditions, site access, utility positions, and your exact usage requirements — machinery loads, crane needs, ventilation, insulation.
2Structural Design & 3D VisualisationUsing STAAD.Pro / ETABS structural software, our engineers design your shed to ASCE 7 and local building code standards. You receive stamped drawings, a 3D render, and a full bill of quantities before signing anything.
3Fixed-Price Quotation & ContractYou receive a lump-sum price with itemised breakdown — structure, cladding, erection, accessories. Our contract includes a milestone payment schedule, delivery timeline, and structural warranty terms.

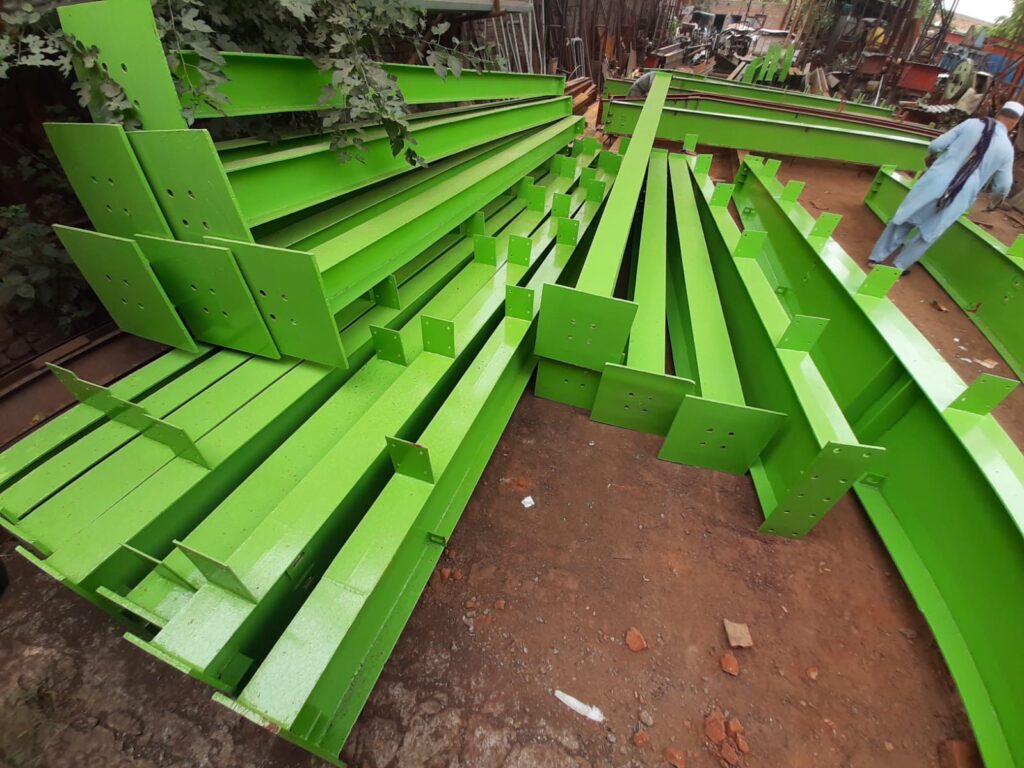

4Factory FabricationSteel components are cut, drilled, welded, and painted in our Lahore fabrication facility under quality-control supervision. Every primary frame section is tagged for fast, error-free on-site assembly.

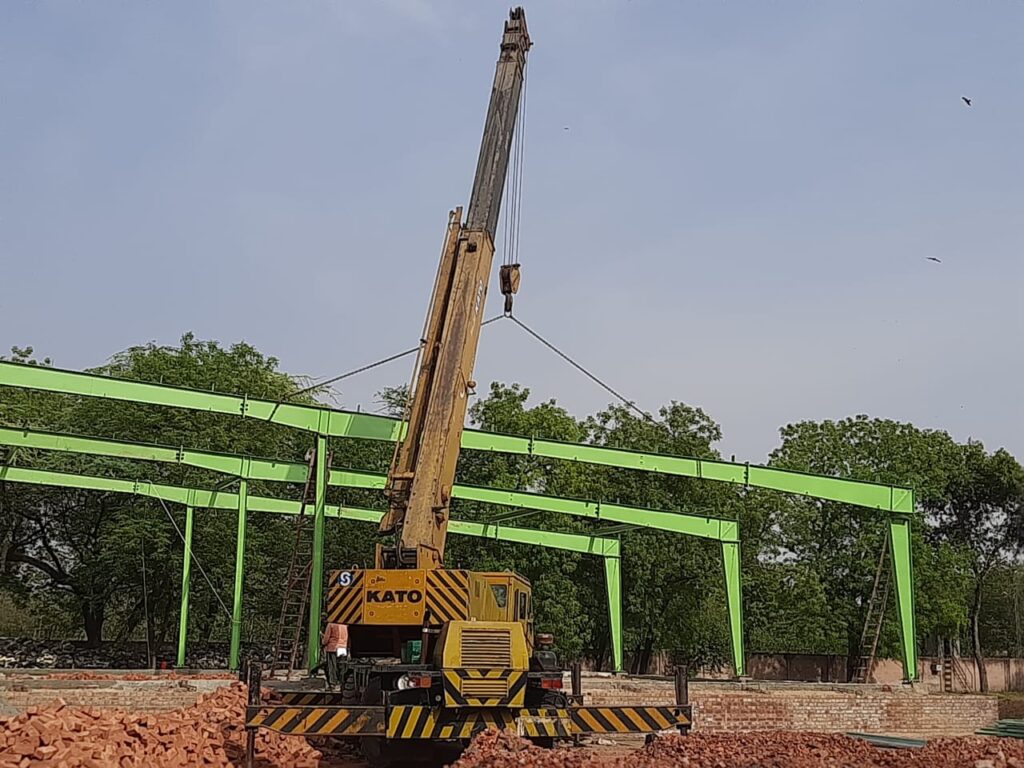

5On-Site ErectionOur experienced erection crew assembles your building in 25–45 days. We handle crane hire, column base grouting, roof and wall cladding, gutters, doors, windows, and ridge vents. Zero welding required on site — pure bolted assembly.
6Handover, Inspection & After-Sales SupportWe carry out a formal structural inspection before handover. You receive as-built drawings, warranty documents, and a direct contact for post-completion support. Roof sheet maintenance checks at 12 months — included free.

Why Mech-Civ is the Best PEB Shed Manufacturer in Lahore

There are dozens of contractors offering industrial shed construction in Lahore. Here is the honest case for why Mech-Civ Construction Services is the right choice for your project:

We Design, Fabricate & Erect — Under One Roof

Many competitors in Lahore are traders or brokers — they subcontract fabrication to third-party workshops with no quality control. Mech-Civ does everything in-house: structural design, steel fabrication in our own Lahore facility, and on-site erection by our permanent crew. You deal with one company, one point of accountability.

Qualified Structural Engineers, Not Just Fabricators

A PEB shed that is not properly engineered for Pakistan’s wind loads, live loads, and seismic conditions can fail — especially in Lahore’s monsoon season. Our structural engineers use industry-standard software and every primary frame is calculated, not estimated. You can request our engineering credentials and methodology at any point.

Transparent, Fixed Pricing — No Hidden Charges

Cost overruns are the number-one complaint about construction contractors in Pakistan. Mech-Civ operates on a fixed lump-sum contract model. Your agreed price on signing day is your final price. Any scope changes are formally documented with written change orders before work proceeds.

Factory-Direct — You Pay Manufacturer Prices

Because we own our fabrication facility, our pricing reflects actual steel cost + fabrication labour + overhead — not inflated subcontractor margins. Clients who request competing quotes consistently find Mech-Civ is 15–25% more competitive for equivalent structural specification.

Nationwide Delivery & Installation

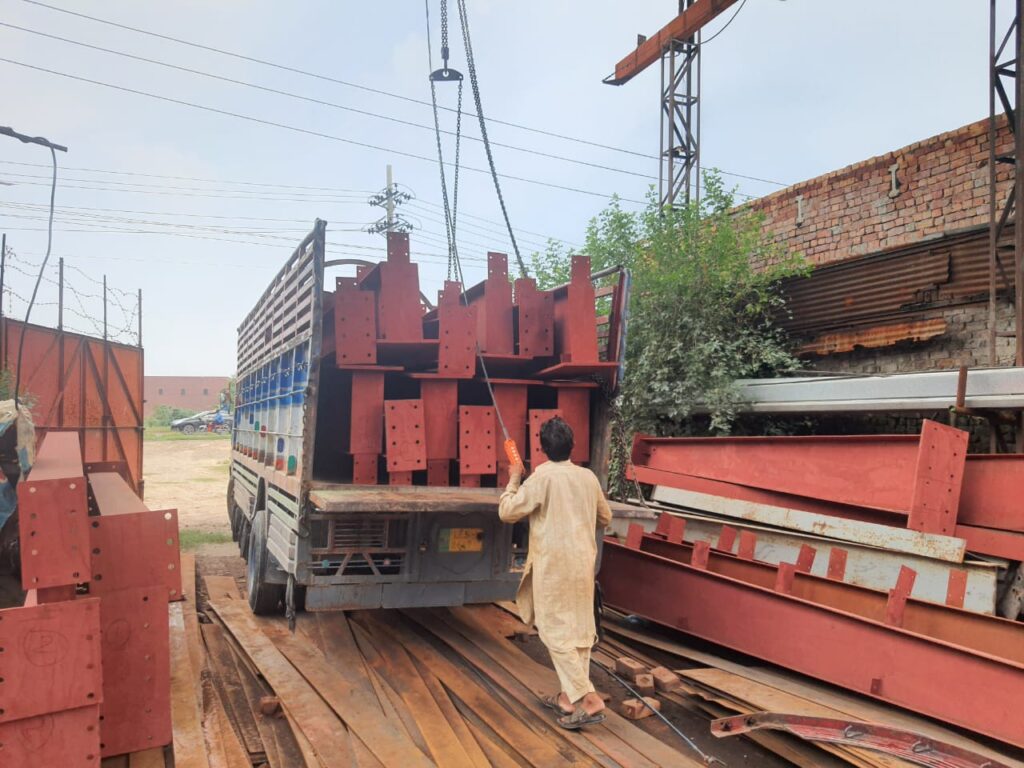

While our fabrication base is in Lahore, we deliver and erect industrial sheds anywhere in Pakistan — Karachi, Islamabad, Faisalabad, Multan, Sialkot, Gujranwala, Peshawar, and beyond. Logistics and erection costs are included in our quotation.

Request a Free Site Visit & Quote Today

Our engineer will visit your site within 48 hours, assess your requirements, and prepare a no-obligation detailed quotation — with structural drawings and a 3D render. Call +92-321-8771689 or submit your project details online.

Ready to Start Your Industrial Shed Project?

Get a free site survey + detailed quotation within 48 hours. No obligation. Factory-direct pricing with full structural drawings included.Call Now — Free Consultation 📞 +92-XXX-XXXXXXX

Frequently Asked Questions — PEB Sheds in Lahore & Pakistan

These are the questions our clients ask most often. If your question is not answered here, call us directly — our engineers are happy to discuss your project.
How much does a PEB shed cost per square foot in Lahore?

PEB shed prices in Lahore start from PKR 800 per sq.ft for the structural steel and cladding package. Foundation work adds approximately PKR 150–400/sq.ft depending on soil bearing capacity and foundation type. A complete turnkey PEB shed — including structure, cladding, foundation, gutters, doors, and erection — runs between PKR 2,100 and PKR 2,500 per sq.ft. Larger spans and crane-ready designs are slightly higher. Mech-Civ provides itemised fixed-price quotations after a free site survey so you have exact numbers before committing.

How long does it take to build an industrial PEB shed in Lahore?

From design approval to completed erection, most PEB sheds take 25–45 days. Small sheds (under 3,000 sq.ft) can be ready in 20 days. Large industrial complexes (50,000+ sq.ft) typically take 60–90 days. Compare this to traditional RCC construction which takes 4–7 months for a similar footprint. The reason PEB is so fast is that fabrication happens simultaneously with your site preparation — by the time the foundation is cured, your steel structure is already manufactured and ready to erect.

What is the difference between a PEB shed and a regular steel structure shed?

A PEB shed uses computer-optimised tapered steel sections — the column and rafter are heavier where bending stress is highest and lighter where it is low. This reduces total steel tonnage by 30–40% vs a standard structural section design. All components are factory-fabricated and arrive site-ready. A standard steel structure shed uses hot-rolled uniform sections (like I-beams or channel) that are cut and welded on site — which is less precise, slower, and ultimately heavier and more expensive for the same structural performance.

Can Mech-Civ build a shed with an EOT overhead crane?

Yes — and this is an area where proper engineering really matters. Mech-Civ designs PEB sheds with integrated crane runway beams for EOT cranes from 2-ton to 30+ ton capacity. The crane wheel loads, dynamic impact factors, and runway beam deflection limits are all factored into the structural model from the start. If you add a crane to a shed that was not designed for it, you risk structural damage. Always tell your manufacturer your crane requirement during the design stage.

Do you provide structural drawings and engineering calculations?

Yes. Every Mech-Civ project includes stamped structural drawings (plan, elevations, sections, connection details), a structural analysis report, a foundation design, and a bill of quantities. These are provided to the client before construction begins and can be submitted to local authorities or your own consulting engineer for independent review. We do not fabricate without finalised and approved drawings.

What warranty do you offer on a PEB shed?

Mech-Civ offers a 10-year structural warranty on primary steel frame elements against manufacturing defects and structural failure under design loads. Roof and wall cladding carries a 5-year paint/coating warranty (subject to maintenance). Our standard contract also includes a 12-month defects liability period during which any punch-list items are rectified at no cost.

Do you build industrial sheds outside Lahore?

Yes. Mech-Civ delivers and installs industrial sheds anywhere in Pakistan. We have completed projects in Karachi, Islamabad, Faisalabad, Multan, Sialkot, Gujranwala, Sargodha, and other industrial zones. Our quotation includes transport and on-site erection regardless of location. For projects in Sindh, KPK, or Balochistan, we typically mobilise our own erection crew rather than relying on local contractors — maintaining the same quality standard as Lahore projects.

Can I see completed PEB shed projects before placing an order?

Absolutely. We encourage every potential client to visit at least one of our completed projects in Lahore or the surrounding area before signing a contract. We can arrange site visits to factories, warehouses, and industrial sheds we have built — with the client’s permission. We can also provide a portfolio of project photographs with dimensions, specifications, and client contact references.

What is included in the PEB shed price — and what is extra?

Included in our standard PEB package: structural design, all primary and secondary steel members (columns, rafters, purlins, girts, bracing), colour-coated roof and wall cladding, ridge vent, gutters and downspouts, all bolts and fasteners, primer and finish paint, and on-site erection.

Typically quoted separately: foundation and piling, floor slab, electrical wiring and switchgear, plumbing, HVAC, fire suppression, mezzanine floors, internal partitions, office block, and site clearing/levelling. We can quote all of these as part of a full turnkey package if required.How do I get started?

What information do you need for a quote?

To prepare an accurate quotation we need: (1) site location and access details, (2) required shed footprint (length × width), (3) eave height or internal clear height, (4) primary use (factory, warehouse, cold storage, etc.), (5) any special requirements like overhead crane, mezzanine, insulation, or fire rating, and (6) your timeline. You can share a simple sketch or just call us — our engineer will ask the right questions and arrange a free site visit within 48 hours.
